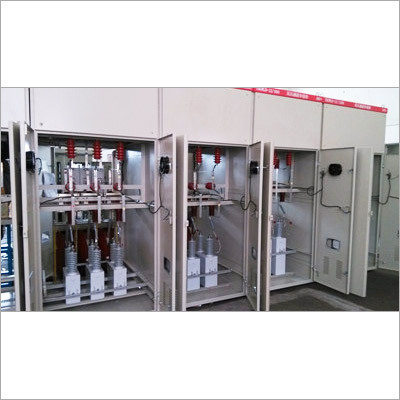

Cabinet Hv Shunt Capacitor Device

Cabinet Hv Shunt Capacitor Device
Cabinet Hv Shunt Capacitor Device
Product Code : CHSCD-01
Brand Name : Xi'an Huachao
Product Description
Application & Standard

1) Used for Improving voltage quality of power frequency AC Power system network, reduce line loss, enhance power network power factor, save electric energy, reduce the cost of electricity and make the power system safe and economic operation.
2) Applicable Standard: IEC & IS related standard
 Main technical parameter
1) Rated voltage: 6KV, 10KV or based on customer requirements
2) Rated frequency: 50Hz/60Hz
3) Rated capacity: based on customer requirements
4) Loss Angle tangent:  ≤0.0005
5) Ratio of Maximum and minimum capacitance in three phases capacitance is not
more than 1.01
6) Can run continuously under 1.1 Un
7) Can run for a long time when rms is not more than 1.3Un.

Service Condition

1) indoor use
2) Altitude :≤2000m. above 2000m provide plateau type product
3) Ambient temperature: -40℃~+45℃,-25℃~+45℃
4) Installation site should not have violent vibration and impact.
Construction
Composed of capacitor, insulating switch, oxide arrester, series arrester, discharge coil, frame and the other accessories.
