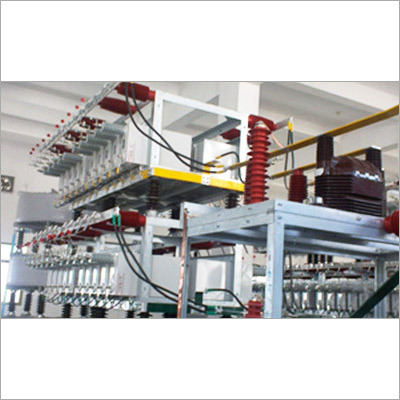

Frame Hv Shunt Capacitor

Frame Hv Shunt Capacitor
Frame Hv Shunt Capacitor
Product Code : FHSC-03
Brand Name : Xi'an Huachao
Product Description
Application & Standard

1)This device is suitable for frequency 50Hz/60Hz power system, to improve power factor and voltage quality,reduce power loss.
2)Applicable standard: IEC/IS related Standard.

Main Characteristic & Technical Parameter

1.Capacitor tolerance between measuring value and rated value: -3%-+5%.
2.Capacitance tolerance between three phases: less than 6%.
3.Can run continuously at 1.1times Un and voltage peak value less than 1.2times 2Un.
4.Can run under 1.3In steady state over current caused by over voltage and residual harmonic wave,and over current allow upto 1.43In.
5.With internal and external fuse protection.
6.With open delta voltage, neutral point unbalance current protection, also with over voltage, under voltage, busbar line-to-line and over current protection, can quickly cut off.
7. Mounting way:  pole mounted or stand way

Service Conditions

1)Altitude ≤2000m; Ambient temperature -40℃ – +55℃,-25℃ -+45℃
2)Above 2000m provide plateau type product
3)Outdoor or Indoor
4)Installation site should not have violent vibration and impact
Composed of shunt capacitor, series reactor, zinc oxide arrester, insulating switch, fuse, frame and
accessories and etc, or based on customer’s requirements.
